Title

Stucco and glass window with flowers in a vase

Type of Object
Artist / Producer
Place of Manufacture
Dating
Late 13th–early 14th centuries AH / late 19th century AD
Dimensions
44 x 36.5 cm (without frame); 52.5 x 45.5 cm (with frame)

Iconography

Description

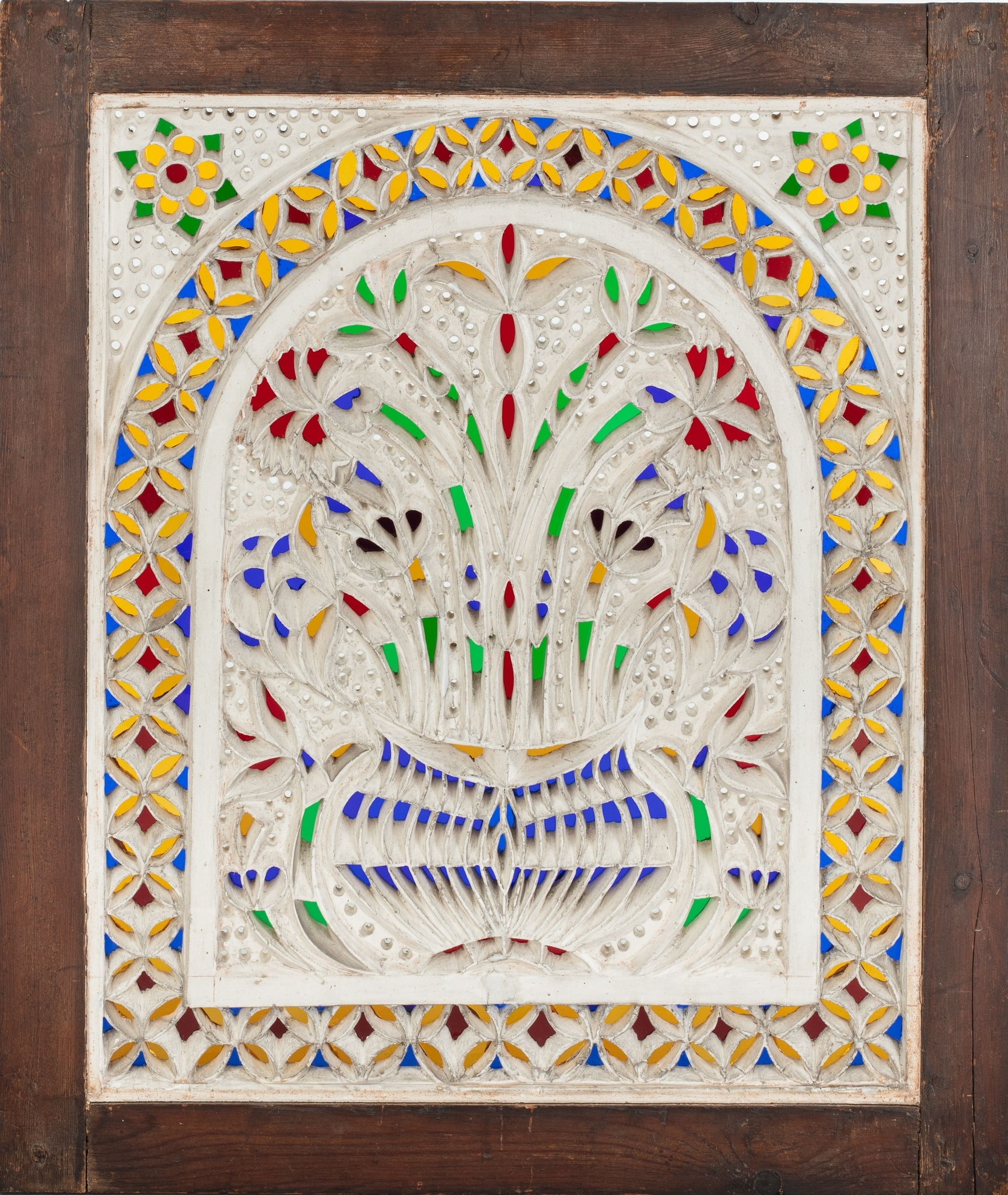

Nine flowers in a blue vase are arranged symetrically along a central axis. Despite the stylization of the flowers, carnations, lilies, and roses are easily recognizable. The vase is flanked on each side by two flower stems, springing from the bottom of the central field. An elaborate semicircular frame composed of four-petalled flowers backed with pieces of yellow glass surrounds the central motif. Six-petalled flowers within a six-pointed star are set in the spandrels. The main representation and the flower and star motif in the spandrels are set within a perforated background, which is slightly recessed.

Iconclass Code
25G41(CARNATION) · flowers: carnation
25G41(LILY) · flowers: lily
25G41(ROSE) · flowers: rose
41A6711 · flowers in a vase
48A9854 · vase ~ ornament
Iconclass Keywords

Technique / State

State of Conservation and Restorations

The latticework is largely preserved in its original condition, but there are many losses (lacunae and superficial losses), as well as cracks in the ornamental border. Two large cracks run from the border through the middle of the motif. The cracks have been glued to ensure stability of the panel (see Hamadene/Vuillermoz, SNOA 136, p. 5). The surfaces of the latticework show dust deposits, but no signs of weathering.

The window was restored in 2018. Loose pieces of glass were reattached. Missing pieces were replaced with new glass; the new pieces are incised with the date ‘2018’. A pure white plaster has been used for fixing the glass on the back of the panel; remains of the old embedding layer remain in the unrestored areas (see Hamadene/Vuillermoz, SNOA 136, pp. 2–4).

Technique

Latticework carved into a rectangular stucco panel with an average thickness of 14–17mm and inlaid with colourless and coloured pieces of glass. The pieces of glass are attached to the back of the panel by a thin layer of gypsum plaster with a thickness of 0.5–1.5mm.

The pieces of glass were cut to size – more or less following the form of the openings – using a diamond cutter, leaving scratch marks in some places. Coloured glass was used for the floral motif, while the perforated areas are covered with large pieces of clear glass. The latter show a greyish or greenish tint and are slightly thinner (0.5–1mm) than the coloured pieces of glass (1–1.5mm).
The colours include emerald green, cobalt blue, dark yellow (amber), and ruby red. The red glass is flashed, that is, a double-layered sheet glass consisting of colourless glass covered with a thin layer of red glass. All pieces have shiny surfaces and do not show inclusions (air bubbles).

The design of the latticework is laid out on two levels: The main motif (level 0) was cut out of the stucco panel with sharp tools following the lines of a preliminary drawing painted in red chalk (sanguine) on the front of the panel. Traces of this preliminary drawing can still be seen in some places. The second level (level –1), which lies 4–7mm below level 0, shows irregularly spaced, conical perforations. The holes were made by piercing metal or wooden pins from the front of the panel into the not yet fully hardened plaster. They have diameters of c.6mm and are slightly tapered towards the back. The distances between the holes ranges between 3 and 6mm. The main design and the perforations have been worked in such a way that the incident light is directed downwards into the room.

The stucco panel was produced by pouring the plaster directly into a wooden frame. Its colour is off-white. The back of the panel (corresponding to the upper side in the moulding process) is slightly uneven. To improve adhesion of the thin plaster layer used to fix the pieces of glass, the back of the plaster panel was roughened using a serrated tool. Traces of a shiny, brown glue-like substance around the openings suggest that an adhesive (probably animal or vegetable glue) was used to fix the pieces of glass to the panel and prevent them from being displaced while pouring the embedding stucco layer.

The frame consists of four strips of softwood joined together by tenon dowel joints and fixed at each corner by two iron nails. It was painted brown after the moulding of the panel. Traces of hinges on the right edge and on the lower right corner of the frame indicate that the window was made as an opening casement.

History

Research

This stucco and glass window corresponds iconographically and technically to one of the standard types of qamariyya widespread in Egypt during the Ottoman period. Similar windows have survived in several of the collections studied (see for instance IG_7, IG_166, IG_178, IG_356). The representation of flowers in a vase is a widespread motif in Islamic decorative arts. It can also be found in numerous other media, such as ceramics, wood panelling, wall paintings, and textiles, over a long period of time, and in both sacred and profane contexts. Depending on the quality of the design, the type of flower cannot always be identified. Among the most sophisticated examples of stucco and glass windows with the vase motif are those in the apartments of the Crown Prince at the Topkapı Serail (early 17th century, date of the windows uncertain) and those in the Sultan’s Lodge (hünkâr kasrı) of the Yeni Cami (1661–1663, date of the windows uncertain), both in Istanbul.

Stucco and glass windows with flowers in a vase also aroused the interest of Western artists and architects, as is attested by a significant number of book illustrations, sketches, and paintings (see for instance IG_43, IG_118, IG_149, IG_153, IG_437, IG_443, IG_461), as well as by the replicas of such windows installed in Arab-style interiors across Europe (IG_48, IG_49, IG_57–IG_59, IG_64, IG_91, IG_431).

The window discussed here stands out from other qamariyyāt of the same type, owing to its elaborate semicircular frame. It forms part of a group of four qamariyyāt acquired by the French industrialist and art collector Émile Étienne Guimet (1836–1918). All four windows became part of the collection of the Musée Guimet, founded in Lyon in 1879, and are today conserved at the Musée des Beaux-Arts (IG_254, G_255) and the Musée des Confluences (IG_256, IG-257) in Lyon. Whereas IG_254 and IG_257 show identical compositions of curlicues and flowers, this qamariyya as well as IG_256 (held at the Musée des Confluences) represent late versions of the flowers in a vase motif.

Unfortunately, there is no information on the place of acquisition, the date, or the provenance of this and the other three windows of the group. The state of preservation of the stucco grille of this window, in particular the lack of weathering, suggests that it has never been exposed to the outside environment. We therefore assume that it has never been part of a historic building in the Islamic world, but was produced specifically for the flourishing art market in the late 19th century and for use in the Arab-style interiors of Western collectors. Chemical analysis of five pieces of colourless glass from the two windows preserved at the Musée des Confluences (IG_256, IG-257) reveal that the glass was made from relatively pure raw materials (soda, lime, silica), corroborating production in the late 19th century.

Mentioned in:

  • Salima et al 2019, pp. 73, 74.

  • Giese/Keller/Wolf 2023.

Dating
Late 13th–early 14th centuries AH / late 19th century AD
Period
1850 – 1899
Previous Location
Place of Manufacture
Owner

since 1969 Musée des Beaux-Arts, Lyon

Previous Owner

Émile Étienne Guimet · ? –1969 Musée Guimet, Lyon · since 1969 Musée des Beaux-Arts, Lyon

Inventory Number
1969-387

Bibliography and Sources

Literature

Giese, F., Keller, S., & Wolf, S. (2023). “Vitraux (qamariya),” in S. Hellal, S. Aube, & É. Brac de la Perrière (Eds.), Les arts de l’Islam au Musée des Beaux-Arts de Lyon (pp. 348-353). Gent: Snoeck.

Hellal, S., Barragán, C., & Linares, R. (Eds.). (2019). Artes decorativas islámicas. Colección del Museo de Bellas Artes de Lyon, exhibition catalogue (Puebla, Museo Internacional del Barroco, 6 November – 9 February 2020). Puebla.

F. Hamadene and L. Vuillermoz, SNOA 136 – Fiche de Constat d'état. Analysis report of the Musée des Beaux Arts de Lyon, November 2018.
